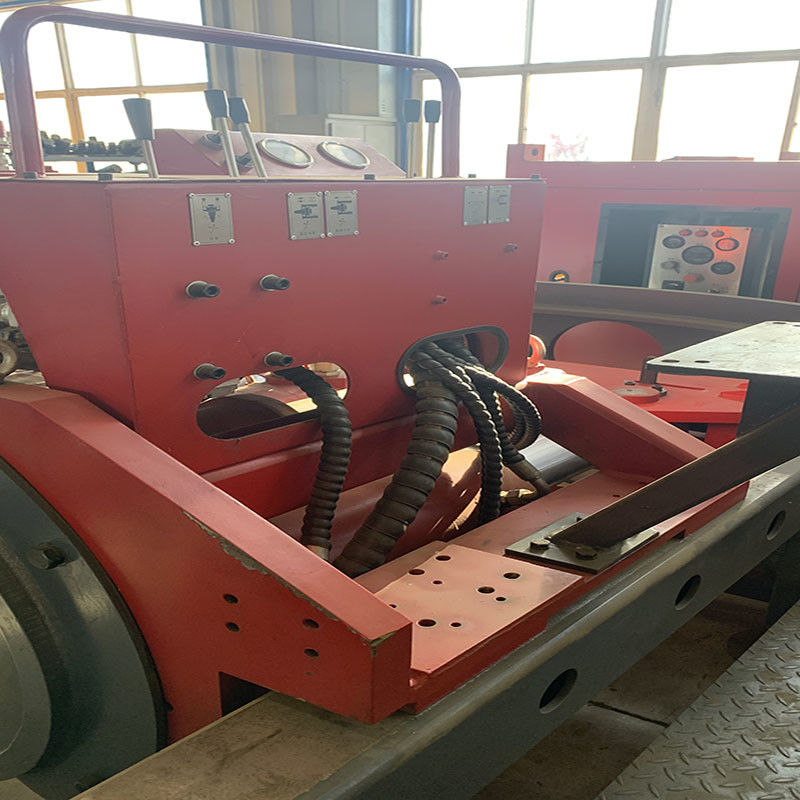

Advanced Optical Navigation Target Technology Guided Spiral Horizontal Drilling Machine
Introduction
The horizontal directional drilling rig saves time and money for users in operation. The drilling of the horizontal directional drilling rig is safe and fast. Generally, the corresponding power is configured according to the user's selection. It can operate continuously without heating the machine. It is safe and reliable to operate by one person
| Engine | |
| DCEC Cummins | QSB4.5-C160Ⅲ |
| Rated Output at 2200rpm(Kw) | 119 |
| Electric system(V) | 24 |
| Fuel tank capacity(L) | 380 |
| Hydraulic system(Mpa) | 24 |
| Auxiliary hydraulic system pressure(Mpa) | 20 |
| Hydr.oil tank capacity(L) | 850 |
| Max.torque at low speed(Nm) | 24000 |
| High rotating speed(r/min) | 0-50 |
| Low rotating speed(r/min) | 0-25 |
| One step stroke(mm) | 300 |
| Spindle clearance to ground(mm) | 673 |
| Rotary head drifting distance(mm) | 320 |
| Pushing speed(m/min) | 0-0.5 |
| 0-1.25 | |
| Pushing force(t) | 120 |
| Duct tube diameter(optional)(mm) | Ø325-Ø711 |

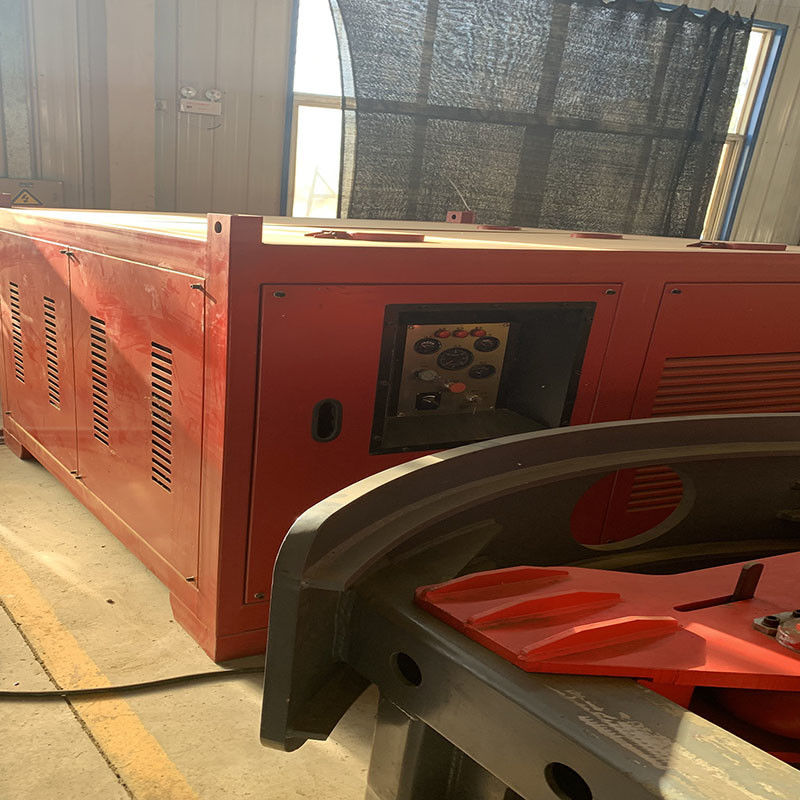

| Dimension of power pack(mm) | 2280*1890*1620 |
| Power pack weight(Kg) | 2400 |
1. High reliability:
The hydraulic overload protection system is reliable, safer, and has good waterproof performance.
2. Strong geological adaptability:
The speed can be adjusted without the need for slope, and different cutting wheels can be designed for different geological conditions. Therefore, it has strong adaptability.
3. High rock breaking efficiency:
The special design of a large eccentric cone crusher can improve the efficiency of secondary crushing and also make it easier to discharge rock blocks.
4. Good construction operability:
The lifting speed and slurry flow can be continuously adjusted, making it easier to achieve a balance between the lifting speed and slurry flow transportation.
About Suhigo
Why choose suhigo?
1) Suhigo is professional manufacturer, obtained ISO9001, ISO14001, GB/T28001 HSE Certificates, and CE certificate.
2) Suhigo has rich project experience with CPP, CNPC and SINOPEC branch oil construction companies.
3) Pipelayer cabin can be provided with ROPS & FOPS certificates, for option.
4) Suhigo product has exported to Russia, Middle Asia, Middle East, Africa etc.
5) Suhigo factory covers 30,000m2 and has 100+ workers including office, workshop and field service personnel.
